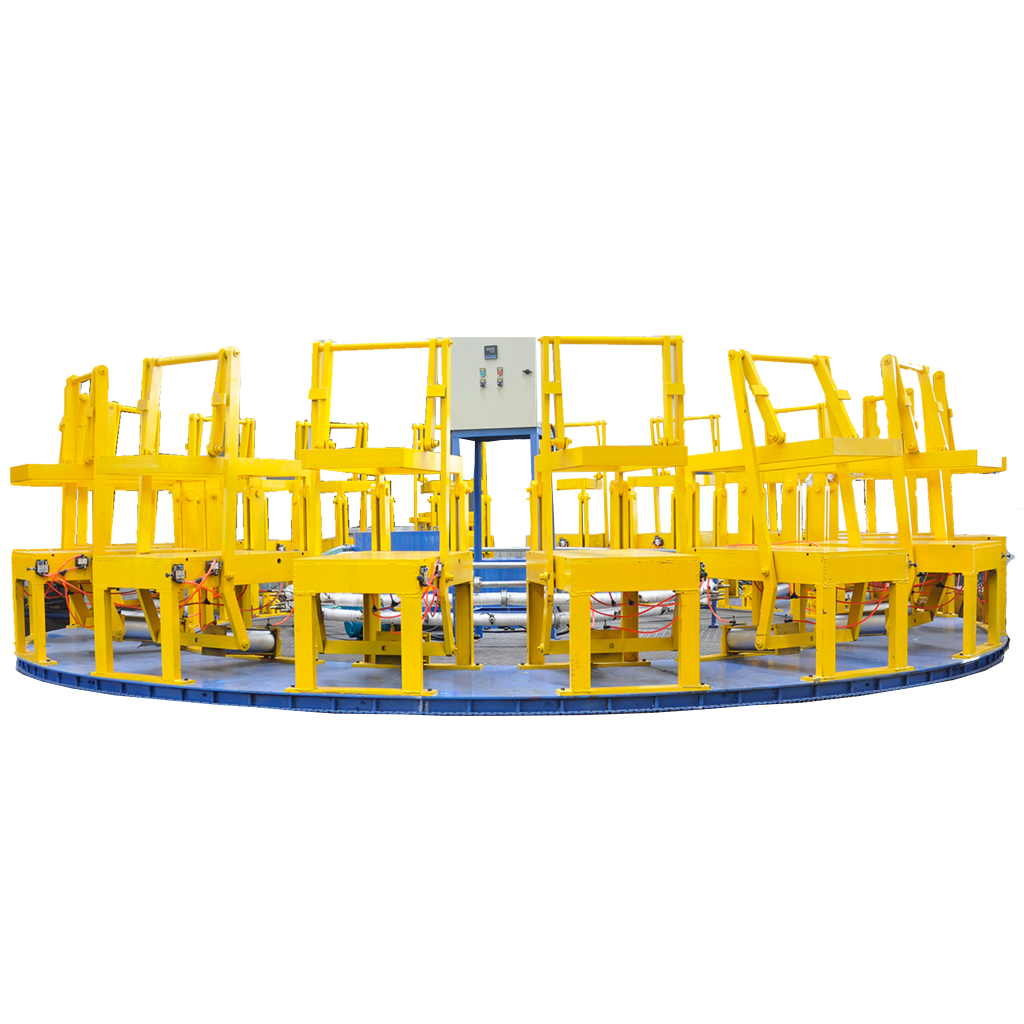

Carousel Foam Pillow Production Line
The carousel pillow production line has a compact structure and a high degree of automation, and is suitable for medium-capacity production needs. The entire line is mainly composed of a foaming machine, a raw material storage system, a mold platform, a temperature control system, and a demoulding device. It supports multi-station continuous pouring and is suitable for a variety of pillow-shaped molds. It has the advantages of saving space, high efficiency, and scalability. It is an ideal solution for creating large-scale, standardized PU pillow production.
Specification Of Carousel Foam Pillow Production Line
Turntable cable diameter | Customizable |
Number of Workstations | Within 80 stations |
Height of the turntable line from the ground | 400 mm |
support wheel | 20 |
running speed | Adjustable from 4 to 12 minutes per revolution |
driving mode | Reduction unit |
Reducer power | 5.5 kilowatts |
Load capacity of the center support | 3 0 t |
Disk loading | 3 0 t |
Thickness of rotating line steel plate | 6mm |
Wire skeleton of a turntable | 10 mm I-beam (national standard) |
steel track plate | 16 mm steel plate |
Components Of Carousel Foam Pillow Production Line
Mold Bases
The pneumatic formwork system consists primarily of the lower mold base, support plate, upper mold base, mold opening cylinder, clamping pin, clamping cylinder, clamping air bag, guide rod, safety pin cylinder, compression spring, pneumatic control valve, connecting shaft, and other components, as well as an electrical control box. The main body of the formwork system is machined and formed by section steel welding, making it both firm and beautiful.
| Loading template size | left and right 800 mm Front and rear 900 mm |
| Closed mold height | to be determined |
| Clamping force | up to 4000kgf |
| Airbag stroke | 30 mm |
| Air source pressure | cylinder air source 0.6-0.8Mpa |
| Air bag air source | 0.2- 0.3Mpa |
| Solenoid valve control voltage | DC24V |

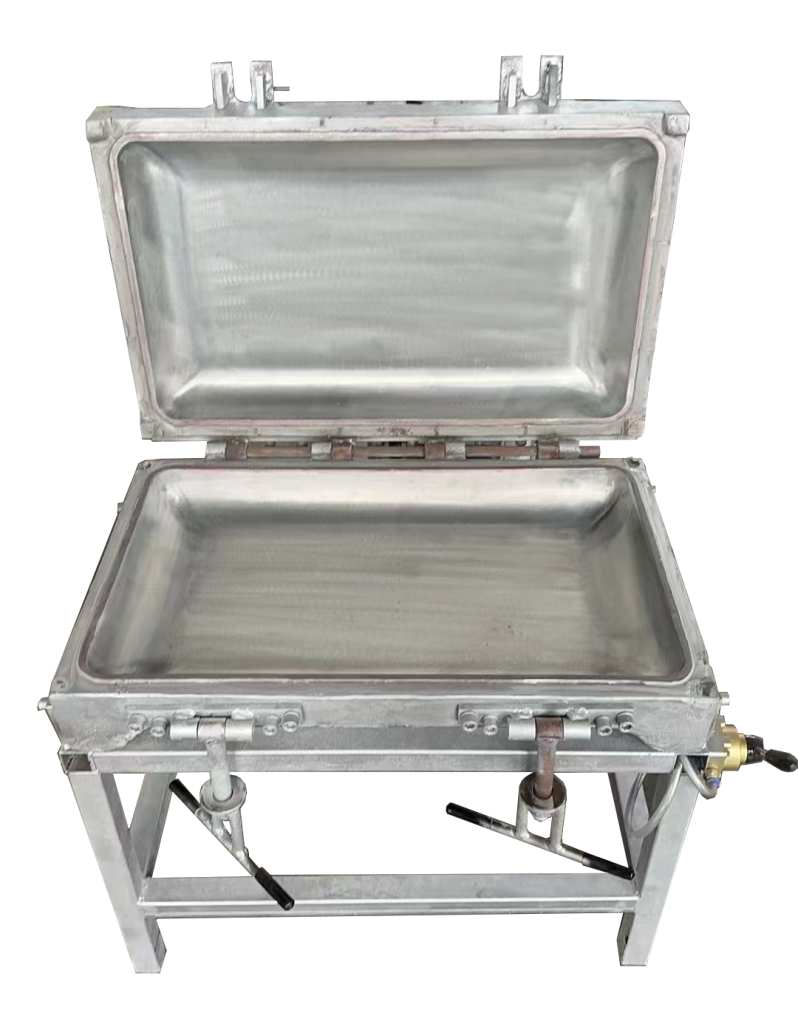

Polyurethane Pillow Molds
- High-precision processing：The mold is made of aluminum alloy or steel, with precision processing and stable structure.
- Excellent thermal conductivity：Fast heat conduction helps constant temperature control and rapid curing of the mold.
- Fine surface treatment：Smooth surface and clear texture ensure uniform texture of the finished pillow.
- Support multi-cavity design：Single-cavity or multi-cavity molds can be customized to improve production efficiency.
- Adapt to a variety of materials：Suitable for PU systems such as slow rebound, memory foam, cold curing, etc.
- Compatible with a variety of production lines：Widely used in automated production lines such as disc lines and banana lines.

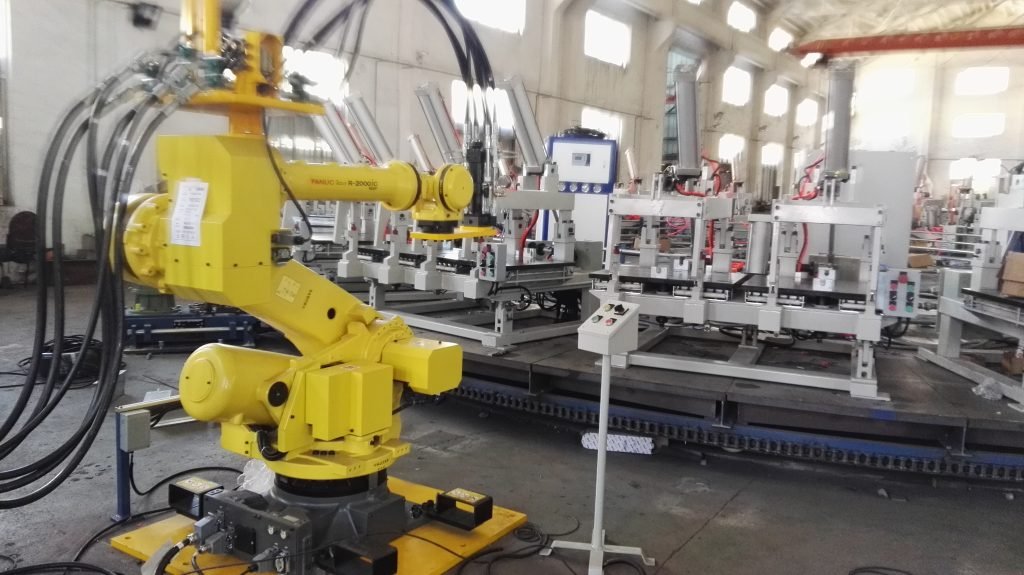

Robot Arm
- Precise pouring: The robot arm automatically controls the movement and positioning of the foaming head to ensure accurate and uniform injection of raw materials.
- Efficient operation: It can continuously and quickly pour multiple stations, greatly improving production efficiency.
- Synchronous control: It is linked with the foaming machine and the disc platform to unify the operation rhythm and ensure smooth rhythm.
- Reduce labor: Replace manual pouring, reduce labor intensity, and reduce human errors.
| Robot model | GP180 | GP12 |
| Degree of freedom | 6 | 6 |
| Horizontal extension | 2702mm | 1440mm |
| Transportable mass | 180kg | 12kg |
| Main body mass | 1020kg | 130kg |
| Repeat positioning accuracy | ±0.05mm | ±0.02mm |
| Controller | YRC1000 | YRC1000,YRC1000micro |
| Protection level | Main body: IP54, wrist axis: IP67 | Main body: IP54, wrist axis: IP67 |
| Installation method | Floor mounted | Floor-mounted, wall-mounted, inverted, tilted |
| Purpose | Transportation, picking/packaging, palletizing, assembly/disassembly | Transportation, picking/packaging, palletizing, assembly/disassembly |
Mold Temperature Controller
- Precise temperature control and sensitive response: PID control algorithm is used to automatically heat or cool the medium to achieve precise adjustment of mold temperature.
- Wide voltage input: supports AC85~265V wide range input, suitable for most power grid environments in the world.
- Multiple temperature protection functions: built-in high temperature alarm, low temperature alarm, heater overheat protection, excessive temperature difference alarm, etc.
- Multi-signal acquisition: supports K-type thermocouple input, and can simultaneously monitor water inlet temperature, water outlet temperature, and pump current.
- Fault self-check and alarm: It has 11 error code alarms (such as lack of liquid, reverse phase, sensor failure, etc.), and has sound and light alarm and display functions.
- Intelligent operation status display: The front panel LED indicates the current operation status, including heating, cooling, operation, fault and other modes.
- Humanized operation interface: supports multiple user functions such as timed power on and off, temperature unit switching, operation timing, parameter locking and recovery.

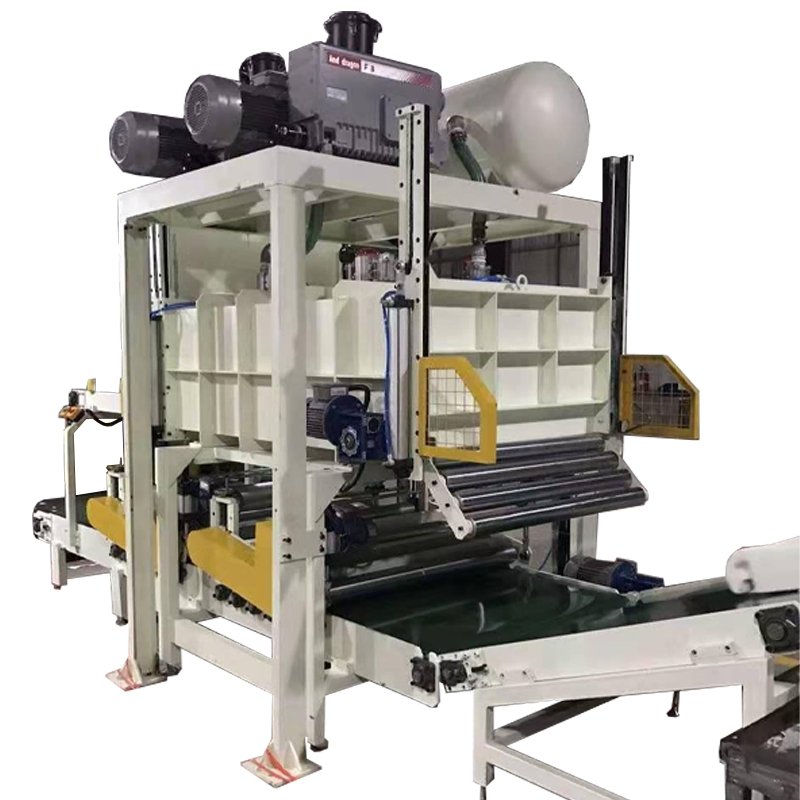

Vacuum Bubble Crusher
- Dual vacuum and mechanical foam breaking systems, suitable for framed and frameless foam
- Multiple vacuum stages + multiple rolling groups, effectively breaking bubbles while avoiding material rupture
- High-precision position sensing and vacuum value display, the entire process is visible and controllable
- All chains are equipped with protective covers, and all systems use 24V safe voltage
- HMI can display key information such as vacuum value, belt speed, and running time
- Foam thickness: 100-200mm
- Length: 300-1200mm
- Width: 200-800mm
Polyurethane Raw Materials
- Slow rebound, fits the neck curve, and improves comfort;
- Adjustable density (commonly 40-60 kg/m³), taking into account both support and softness;
- After the raw materials are mixed, the reaction is stable and the foaming is uniform, which is suitable for mold casting production;
- Environmentally friendly and odorless formulas can be selected, which meets the environmental protection requirements of the European and American markets for VOC release.
High Pressure PU Foam Machine
- High mixing efficiency：Using high-speed impact mixing head, the raw materials are mixed more fully and evenly, ensuring stable foaming quality.
- Accurate metering：Equipped with a high-precision metering pump, the mixing ratio error is ≤±0.5%, meeting the needs of refined formulas.
- Automatic control：Equipped with PLC touch system, parameter visualization management, support automatic cleaning, fault alarm and other functions.

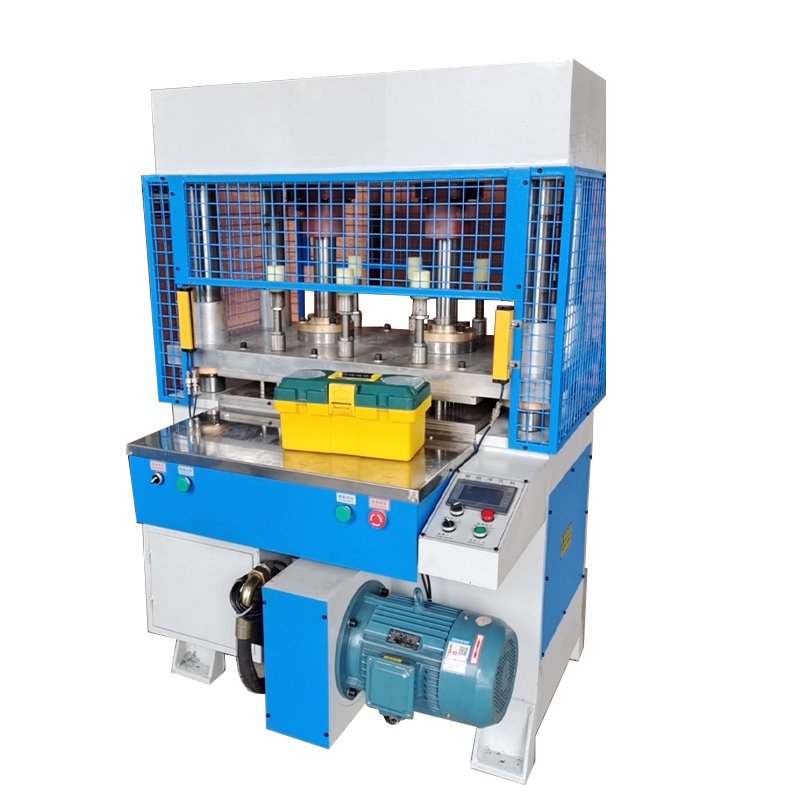

Punch Machine
Punches breathable holes in finished pillows. Pneumatic/hydraulic punching (optional electric servo), 4–30 holes, φ3–10mm aperture, 0–60mm depth, 8–12 pcs/min, PLC control with full safety shield.
Request a Quote
Cutting & Pelletizing Machine
Cuts and shreds foam offcuts and trim into uniform pieces or pellets, reused as filling for shredded-foam pillows and cushions to cut material waste.
Request a Quote
Roll-Packing & Compression Machine
Compresses and roll-packs finished pillows to a fraction of their volume for protective, low-cost shipping.
Request a Quote
Bagging & Packaging Machine
Automatically bags and seals each finished pillow, ready for cartoning and export.
Request a QuoteDownstream & Finishing Equipment
Beyond foaming and molding, Yongjia supplies the downstream equipment that turns molded foam pillows into finished, packed products — punching, cutting, roll-packing and bagging — so you can run one complete line from raw material to shipping carton.
Customer Cases Of Carousel Foam Pillow Production Line
A home furnishing company located in the central United States, focusing on the manufacture of high-end slow-rebound memory pillows. When expanding its production capacity, the customer chose the automated disc-type pillow production line provided by our company. The entire line configuration includes a high-precision foaming machine, a multi-station disc platform, a mold temperature control system and an automatic demoulding device, achieving a daily output of more than 3,000 pillows, and an increase in production efficiency of more than 40%.After installation and commissioning, the customer highly recognized the stability of the equipment and the consistency of the finished product, and plans to introduce a second production line in the next stage to further expand production capacity. This project also successfully helped the customer to expand the brand influence of customized memory pillows in the North American market.
After the equipment was delivered, the customer quickly completed the installation and commissioning. At present, it has achieved a stable output of more than 1,000 pieces of seat foam per day. It highly praised the efficiency and operating experience of the equipment, and continued to negotiate with us for cooperation on the second production line.
