Spray Foam PU Machine for Wall Insulation

  • Yongjia spray foam machines deliver fast, seamless wall insulation with a 5-year Warranty and 20-day Rapid Delivery .
  • Modular design with detachable, upgradeable core components for reliable continuous spraying.
  • Turnkey project services and full-process training to get your spray-foam operation into production quickly.
Get a Quote

Turnkey
Project

faster construction speed

reduced energy costs

JYYJ-H-V6 PU Spray Foam Machine
JYYJ-A-V3 Spray Foam Machine
JYYJ-Q300 Spray Foam Machine
JYYJ-H800 Spray Foam Machine
JYYJ-3H PU spray machine
JYYJ-H600 spray machine
JYYJ-3E Polyurethane Spray Machine

Polyurethane spray foam machine is the best choice for exterior and interior wall insulation, allowing for a seamless connection between insulation layers, high insulation performance, and strong adhesion. Our polyurethane spraying machines are suitable for various insulation projects, including residential buildings, factories, cold storage exterior walls, and steel structure buildings.

Advantages of wall insulation spraying

High-Efficiency Construction


Automatic mixing and continuous spraying improve construction efficiency; one machine can spray 300-500㎡ per day.

Integrated Insulation


Polyurethane foam adheres directly to the wall, eliminating the need for additional panels.

Sound Insulation and Moisture Proof

Closed-cell foam structure effectively prevents condensation and noise transmission, extending the lifespan of the wall.

Long Lifespan

Core components are wear-resistant and corrosion-resistant; the machine can operate continuously for many years and is easy to maintain.

Customizable Voltage

220V or 380V versions can be customized according to the construction site.


Recommended thickness of wall insulation layer

Building Types

Recommended thickness

Notes

Residential/Office Building Exterior Walls

5–8 cm

Improved energy efficiency and comfort

Cold Storage Walls

15–25 cm

Stronger thermal insulation effect

Workshops or Warehouses

8–10 cm

Balancing energy saving and moisture protection

Main Specification Of PU Spray Foam Machine

JYYJ-3D

JYYJ-H-V6

JYYJ-H-V6T

JYYJ-Q300

JYYJ-H800

JYYJ-H600

JX-A-V3

Drive Type

Pneumatic

Hydraulic

Hydraulic

Pneumatic

Hydraulic

Hydraulic

Pneumatic

Raw Material

PU

Polyurea+PU

Polyurea+PU

Polyurea+PU

Polyurea+PU

Polyurea+PU

PUe

Voltage

220V 50HZ

380V  50HZ

380V  50HZ

380V  50HZ

380V  50HZ

380V  50HZ

380V 50HZ

Heating Power

7KW

26KW/22KW

26KW/22KW

15KW

38KW/30KW

26KW/22KW

9.5KW

Output

2-10kg/Min

2-10kg/Min

2-10kg/Min

2-10kg/Min

2-14kg/Min

2-12kg/Min

2-10kg/Min

Heat Hose:(m)

7/set

15/set

15/set

15/set

15/set

15/set

15/set

For Spray

External wall;Internal Wall;Roofi ng;Cold Storage;Cabin
Carriage;Tank Body

water tanks;Water Parks;Sports Stands;High-speed Rail;Viaducts;Industrial & Mining;Equipments;Foam Sculptures;Valve;workshop Flooring;bulletproof clothing;armored vehicles;sewage tanks;Cars;Pipes;mineral processing;equipment;exterior walls;interior walls;Roofing;Cold Storage;Cabin Carriage;Tank Body

External wall;Poultry Farming;Granary;Cold Storage;Mobile Room;Roofi ng;Carriage
Cabin

For Casting

Broken bridge aluminum;aluminum profile;water heater;water tank;beer tank;storage tank;cold and hot water pipe;pipe joint;pipe repairing;refrigerated truck product;package

Water Heater;Water Tank;Beer Tank;Storage Tank;Slab Lifting

Calculation of spray coating material usage

Accessories and Support

Electric air compressors

Electric air compressors

Diesel air compressors

Diesel air compressors

generator

Diesel air compressors

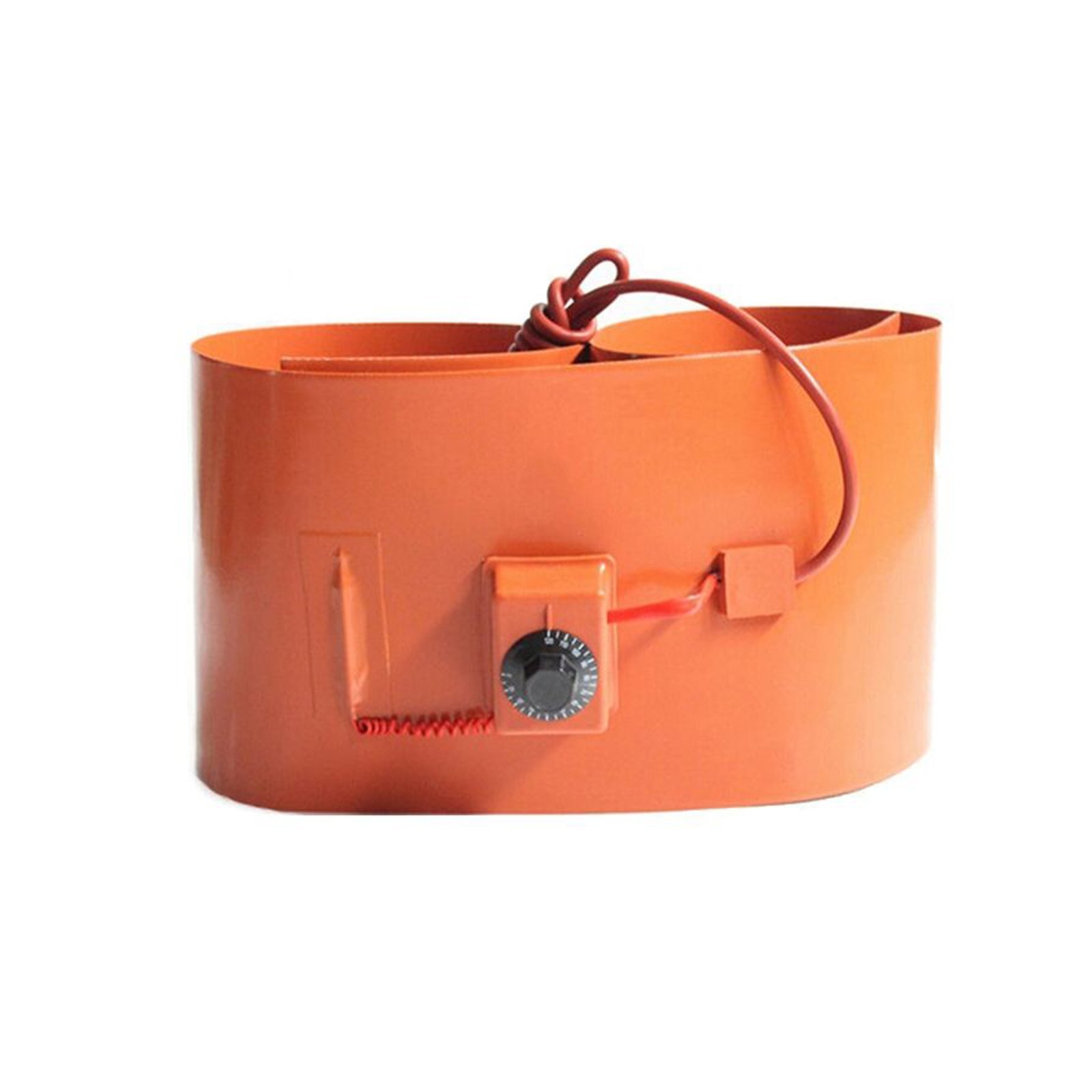

oil drum heater

oil drum heater

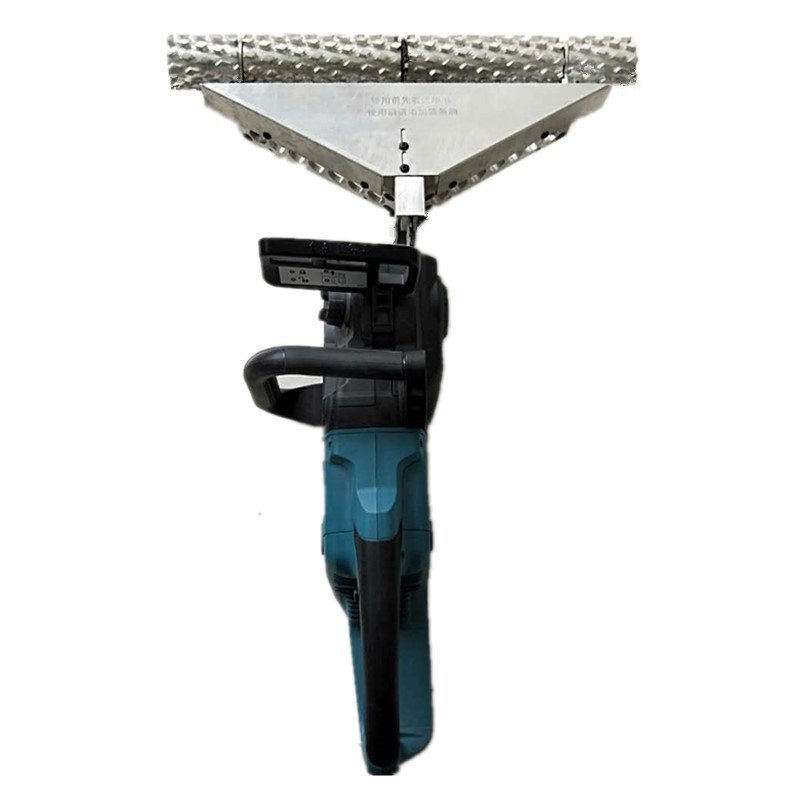

Polyurethane planer

Polyurethane planer

Mixer

Mixer

service

Service

  • Delivery and installation to your door, on-site commissioning provided.
  • After-sales video guidance, teaching you operation and maintenance step by step.
  • One-stop operation and maintenance guidance, providing an operation manual.

buy raw materials and get machine for free

  • Our polyurethane tank insulation spray coating uses a high closed-cell formula with a closed-cell rate of over 90% and a thermal conductivity as low as 0.022 W/(m·K). This allows it to quickly form a dense, seamless insulation layer on the tank surface, significantly reducing heat loss.
  • The material has a controllable expansion ratio and strong adhesion (≥ 0.3 MPa), maintaining uniform foaming on vertical, horizontal, and large curved tank surfaces without sagging or collapsing.
  • The material has a temperature resistance range of -40℃ to 120℃, is resistant to aging, waterproof, and corrosion-resistant, and maintains stable insulation performance even after long-term use.
  • We also offer customized formulas to better suit customer temperature requirements, construction environments, and tank types, resulting in more efficient and durable insulation.
Rigid Foam Material

How to install spray foam machine

The following checks should be made before operation.

PU Spray foam machine wall insulation Success Stories

A Mexican company undertook the wall insulation project for a 1,200㎡ industrial building, requiring an 8cm thick polyurethane insulation layer. The client had previously used traditional panel construction, which resulted in long construction periods and inconsistent insulation performance.

After adopting our 2–12 kg/min flow rate polyurethane sprayer, only 60m of piping was needed to cover the entire wall, and the entire project was completed in 2 days.

The client was extremely satisfied with the construction efficiency, insulation quality, and equipment stability, and currently plans to use our sprayers and materials long-term in other projects.

During mass production, the high-pressure machine ensures uniform foam density, stable flow rate, and no voids in the corners , meeting the customer’s high standards for comfort and safety. Thanks to Yongjia’s solution, the production capacity of the entire production line has increased by more than 30% , and the reject rate has dropped to below 2% , greatly reducing operating costs.

The customer feedback indicates that Yongjia’s high-pressure machine has extremely low failure rate and simple maintenance during long-term operation, not only improving production efficiency but also enhancing the competitiveness of the product in the international automotive seat market.

Using this polyurethane spraying machine, we completed 1,200 square meters of wall insulation in just two days, three times faster than traditional methods. The foam density was stable, the foaming was uniform, completely seamless, and the overall insulation effect was excellent. We plan to continue using this equipment and materials in all our projects.
