How a Polyurethane Packaging Machine Works
The foam-in-place process has four steps and takes under a minute per package:
- Metering. The feed pumps draw polyol (A) and isocyanate (B) from their drums at a fixed 1:1 ratio and keep both components at the set temperature.
- Mixing and dispensing. The heated spray gun blends the two components and injects the liquid mix into a film-lined carton or mold cavity around the product.
- Expansion. The mix foams and expands to fill every void, conforming exactly to the product geometry.
- Curing. Within seconds the foam sets into a semi-rigid cushion; the carton can be closed and moved to shipping immediately.
Compared with pre-molded EPS or EPE inserts, foam-in-place packaging needs no per-product tooling and no warehouse space for cushioning stock: two drums of liquid chemicals replace an entire pallet bay of foam shapes. This makes a polyurethane packaging machine the practical choice for factories that ship many product shapes in low or changing volumes, such as instruments, pumps, machined parts and electronics. See our full range of polyurethane foam machines if your line also needs cushioning, insulation or casting equipment beyond packaging. This unit uses the low-pressure mixing principle; for the difference between mixing technologies, see our guide on high pressure vs low pressure foam machines.
Polyurethane Packaging Machine vs. Pre-Cut Foam Inserts
Buyers comparing a polyurethane packaging machine against stocking pre-molded EPS or EPE inserts are really comparing two different cost structures: per-order tooling versus per-shipment chemical cost.
| Tooling for a new product shape | None — the foam expands to fit the cavity or carton directly | New die or mold cut per SKU |
| Cushion fit | Conforms exactly to the product, filling irregular voids | Fixed shape; gaps around non-standard parts |
| Warehouse footprint | Two chemical drums replace a pallet bay of pre-cut shapes | Requires storage space scaled to SKU count and volume |
| Best fit | Many product shapes, low-to-mid volume, frequent SKU changes | One product shape, high and stable volume |
For factories shipping a narrow, high-volume product line, pre-cut inserts can still be cheaper per unit. For instrument makers, machine builders and 3PL packers handling varied shapes, a polyurethane packaging machine removes the per-SKU tooling step entirely — see the Yongjia factory for how each unit is built and tested before shipment, or request a quote with your product dimensions and monthly shipping volume.
Choosing the Right Polyurethane Packaging Machine for Your Product Line
Not every shipping room needs the same output rate. Match the machine to how many packages you cushion per shift, not the other way around.
- Low-volume, many product shapes. A single-gun polyurethane packaging machine like the model on this page covers instrument makers, spare-parts warehouses and prototype shops that pack a handful of different items per day.
- Mixed-line 3PL and contract packers. Where shift volume climbs and mold changeovers happen often, pair the machine with several interchangeable mold sets so the gun keeps running while an operator swaps fixtures.
- High-throughput single product. If one product shape dominates shipping volume, compare the per-unit chemical cost against pre-cut EPS or EPE inserts before committing — see the comparison table above.
Every quote from Yongjia includes a recommendation on gun configuration and mold count based on your product mix, not just the base polyurethane packaging machine unit.

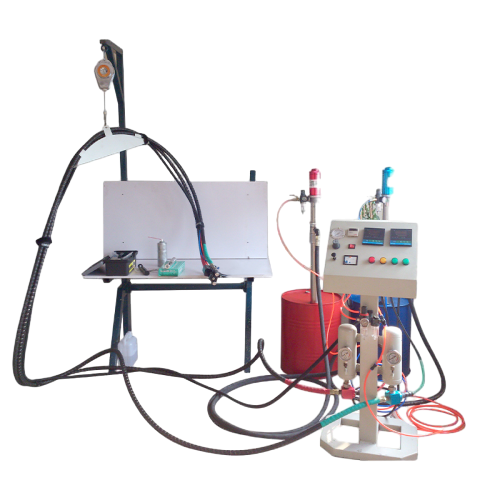

Specification of Pu Foam Packaging Machine
| Raw material ratio | 1:1 (fixed) |
| Raw material viscosity range | 200～1000CPS (at room temperature) |
| Raw material output | 1.5～3Kg/min or 30～50g/s |
| Temperature setting range | 0～90℃ |
| Power supply requirements | Single phase 220V 50HZ |
| Pneumatic working pressure | 0.6-0.8MPa |
| Air supply | 1m3/min |
| Heating and insulation pipe length | 6m |
| Short pipe length of connecting gun | 4m |
| Overall dimensions | 1100X480X380 |
| Transport weight | 100Kg |
Components of Pu Foam Packaging Machine

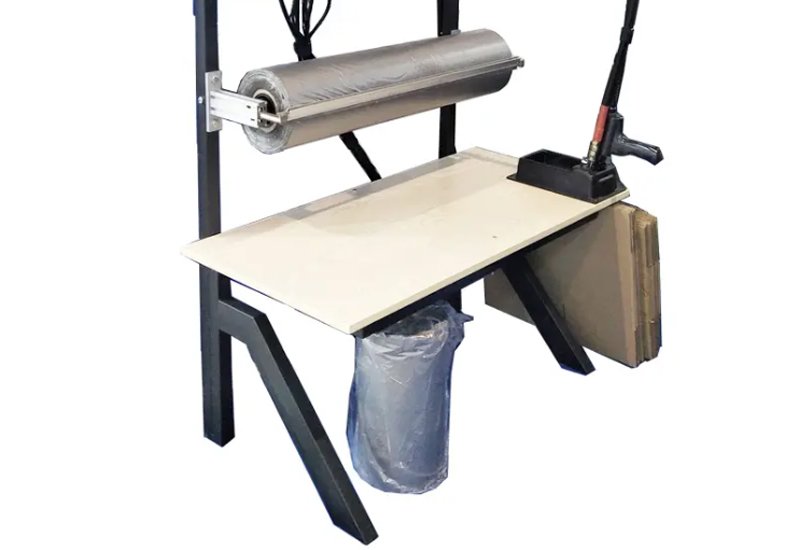

Operation Platform Of Pu Foam Packaging Machine
The operating platform is the working area of the machine, used to place molds or items to be packaged. When not in use, the platform can accommodate a DOP cleaning box to keep the spray gun nozzle soaked in cleaning fluid to prevent raw material accumulation and spray gun clogging.
Request a Quote

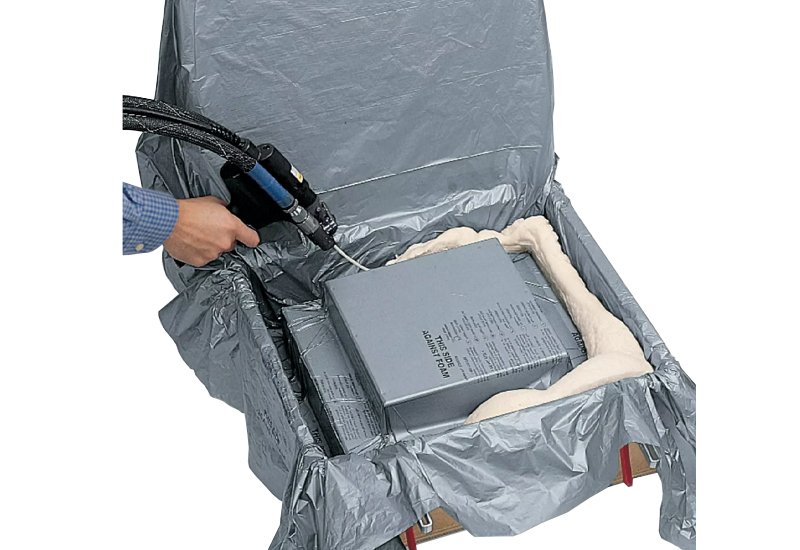

Spray Gun Of Pu Foam Packaging Machine
- It provides mixing, flow control, and switching between different materials.
- It features a heating mechanism to prevent foaming caused by a drop in material temperature as it flows through the spray gun.
- It is designed for quick disassembly and cleaning, making it suitable for frequent use.

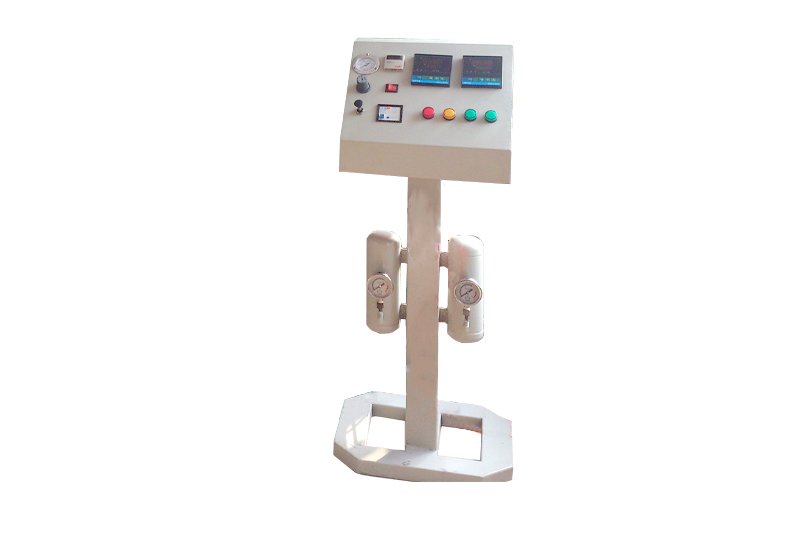

Main Control Cabinet Of Pu Foam Packaging Machine
- Centralized control of all major electrical and operational controls
- Allows users to set and modify injection time, material temperature, and other parameters.
- Precise temperature regulation ensures that raw materials remain within the optimal operating range.
- A built-in safety alarm system notifies operators of abnormal conditions such as overpressure or overheating.

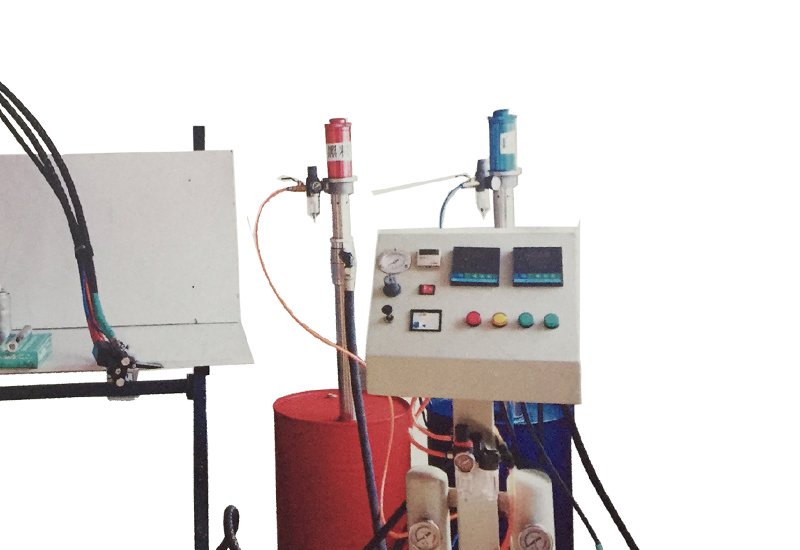

Feed Pump Of Pu Foam Packaging Machine
- It provides precise flow and excellent wear resistance, suitable for materials of various viscosities.
- Output pressure and flow rate are stable and adjustable.
- Material flow is smooth and continuous, preventing uneven foaming caused by pressure fluctuations.

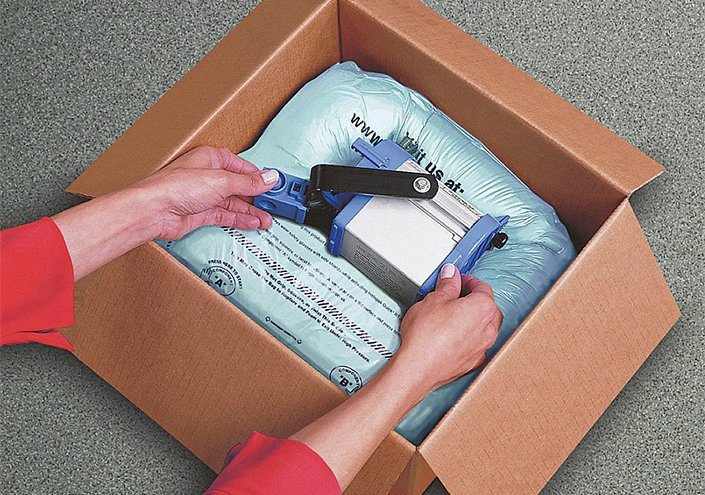

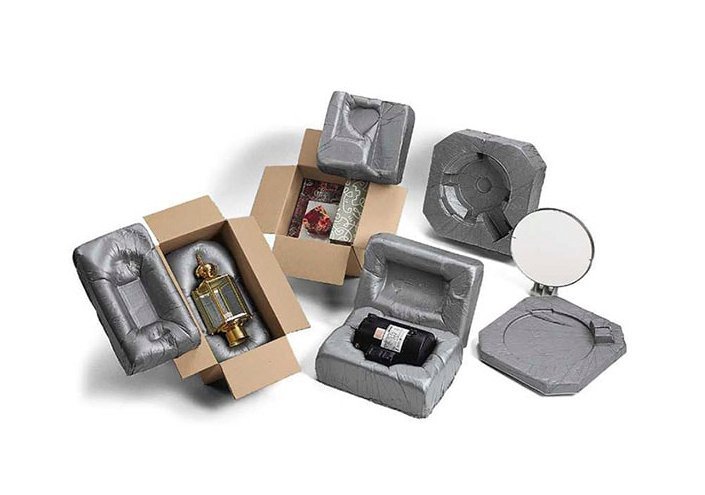

Application of Pu Foam Packaging Machine

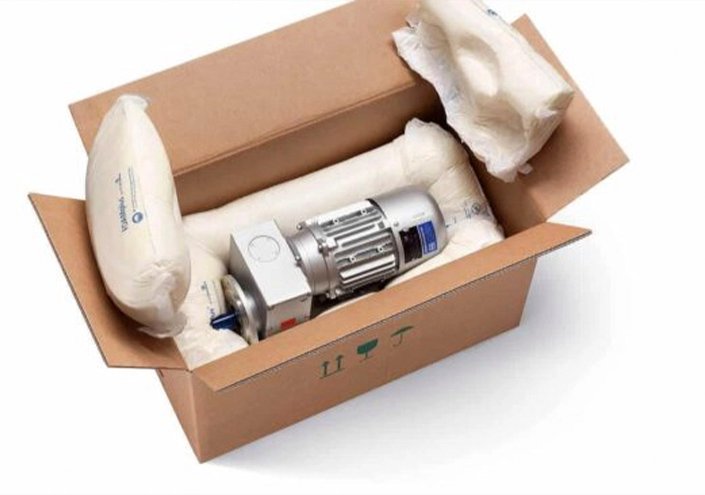

Our foam packaging machines are widely used to protect electronic products, instruments, home appliances and industrial equipment during transportation. By filling the voids with expanded polyurethane foam, a customized cushion is formed around each product to maximize protection against shock, vibration and compression.
FAQs of Pu Foam Packaging Machine
Is the equipment complex to operate?
Modern polyurethane foam packaging machines are usually equipped with automated control systems that are simple and intuitive to operate. The operator only needs to set the parameters and start the equipment, and the equipment will automatically foam and package. Some equipment also has a self-cleaning function to reduce manual intervention.
Does the polyurethane foam packaging machine support different foam densities and hardnesses?
Yes, the polyurethane foam packaging machine can adjust the foaming density and hardness according to customer needs. By adjusting the ratio of components A and B and the temperature control system of the equipment, users can obtain foam materials of different densities and hardness to meet different packaging needs, from soft cushioning for electronics to firmer block-out foam for heavy parts.
What is the production efficiency of polyurethane packaging machine?
The polyurethane foam packaging machine has high production efficiency and can usually complete a foam-and-pack cycle in a short time. Efficiency depends on foam density, foam volume and packaging needs. Modern equipment is usually equipped with automatic adjustment functions to improve production efficiency.
Is it difficult to maintain the equipment?
Maintenance of polyurethane foam packaging machines is relatively simple. Routine maintenance includes regular cleaning of nozzles, pipes, mixing chambers and other components to ensure stable foaming effect. Some equipment is also equipped with an automatic cleaning system, which can effectively reduce manual operations and reduce maintenance difficulty.
What is the energy consumption of polyurethane packaging machines?
Modern polyurethane foam packaging machines adopt an efficient and energy-saving design, which consumes less energy than traditional equipment. By optimizing the foaming process and control system, the equipment can effectively reduce energy consumption and production costs.
What are the cleaning and maintenance requirements for polyurethane foam packaging machines?
Clean the nozzles, pipes and mixing chamber regularly to prevent polyurethane residues from affecting the foaming effect. Check and replace wearing parts such as seals, filters, etc. to ensure normal operation of the equipment. Lubricate transmission components regularly to avoid mechanical failure.
How much does a polyurethane packaging machine cost?
Pricing for a polyurethane packaging machine depends on output rate (kg/min), mold/spray-gun configuration and automation level. Entry-level single-gun units for low-volume shipping rooms cost less than multi-station lines built for high-throughput 3PL or appliance packaging. Yongjia quotes a fixed price after confirming your product shapes, monthly shipping volume and target cycle time — most quotes are returned within 24 hours with a 20-day delivery estimate.
Is a polyurethane packaging machine the same as a foam-in-place machine?
Yes — "polyurethane packaging machine" and "foam-in-place machine" describe the same equipment. Both terms refer to a system that meters and dispenses two-component PU chemicals to form a custom cushion around a product inside its shipping carton or a reusable mold, rather than relying on pre-cut foam inserts.
