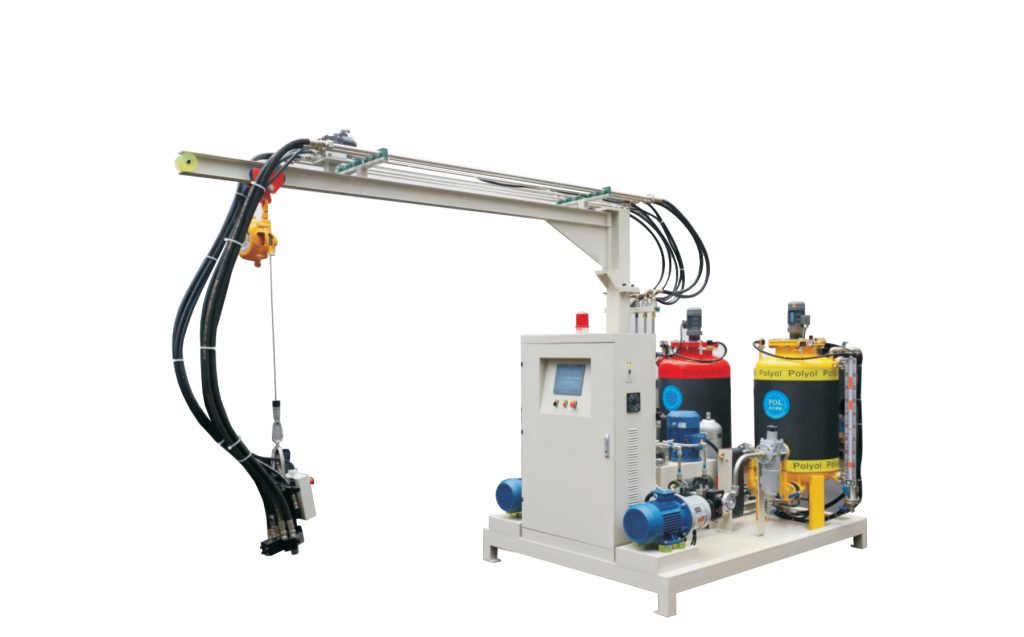

With its advantages of efficient mixing, high pressure impact, and precise metering, polyurethane highpressure foaming machines are particularly suitable for the production of key components such as seats, instrument panels, steering wheels, floor mats , and buffer pads , promoting the overall improvement of vehicle lightweighting, comfort, and safety performance.
1. Car seat foam molding
Application description:
The inner core of car seats usually uses polyurethane high resilience foam material. The high pressure PU foaming machine achieves nano level uniform mixing of polyol and isocyanate through impact mixing pressure of 150-200 bar , and quickly foams and forms after pouring in the mold.
Process advantages:
- Programmable mixing head running track to adapt to complex structure seat molds (such as sports seats, memory foam seats);
- The density is adjustable (common range is 30-60kg/m³), with good resilience, which supports the dual requirements of comfort and support for high-end models;
- Linked with the mold heating system, it shortens demoulding time and improves production capacity.
Typical uses:
front and rear seats, child safety seats, integrated foam parts with massage/ventilation function modules , MPV seats, engineering vehicle seats, kart seats , etc.

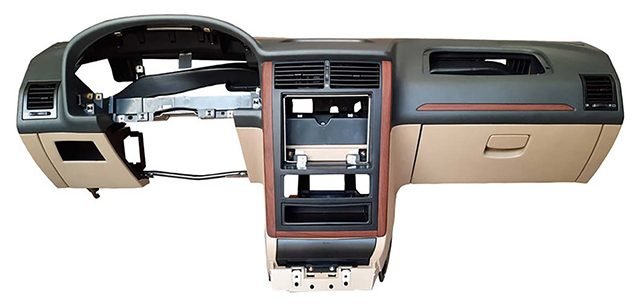

2. Foaming of the instrument panel surface (leather covering)
Application description:
Instrument panels are often foamed and coated with flexible polyurethane foam to enhance the touch and visual sense of the cockpit. The high pressure foam machine is combined with a multi-station turntable mold to achieve a one-step method (directly coating in the mold) or a two-step method (separate production of foam and frame) .
Process advantages:
- High pressure impact mixing technology ensures a fine and uniform cell structure;
- The foam density and hardness can be controlled to meet the touch customization requirements of different car models;
- Automatic metering and proportioning improve production consistency and yield rate.
Typical applications:
central control instrument panel, glove box cover, door upper edge trim.

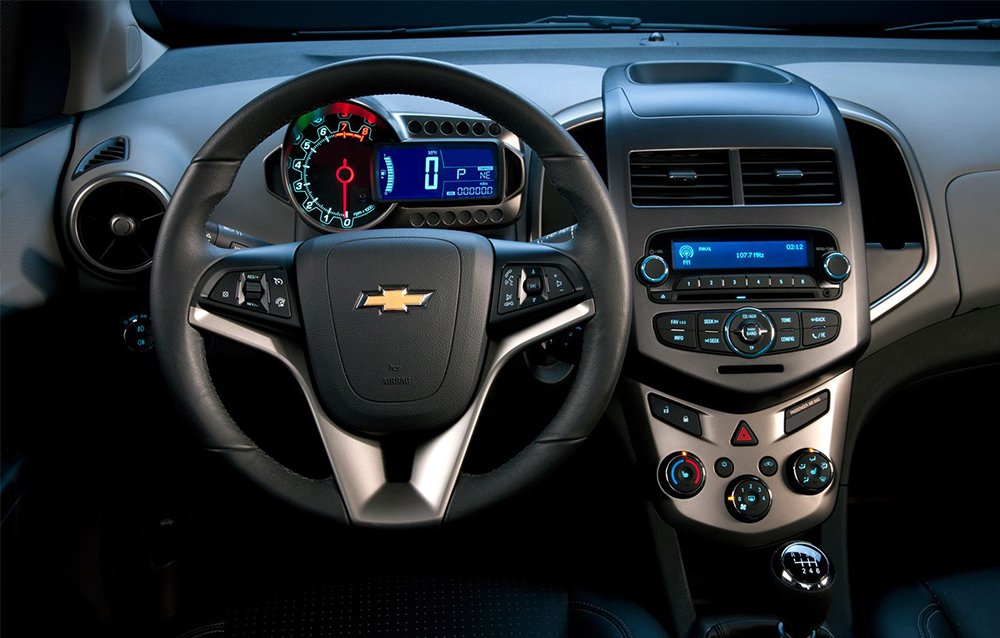

3. Steering wheel lntegral skin Foam process
Application description:
Steering wheels are mostly made of lntegral skin Foam material , which forms a dense and smooth surface on the outside and a fine closed cell elastic foam on the inside, which has both wear resistance and comfortable grip.
Process advantages:
- Onetime molding, no need for wrapping, suitable for mass and standardized production;
- The self-skinning layer is dense, water-resistant and stain-resistant, meeting the needs of daily use and cleaning;
- The surface can be tinted, embossed or spray-coated to match the interior design.
Typical applications:
Steering wheels for cars, SUVs, trucks, and covers for multi-function button areas.

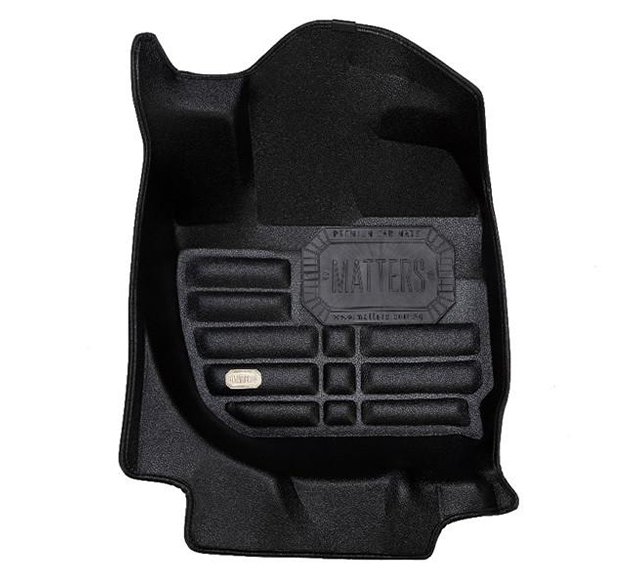

4. Functional interior parts such as floor mats and buffer stops
Application description:
Polyurethane foam can also be used to produce vehicle floor pads, foot pad backs, buffer pads, stop pads and other parts, playing the role of lightweight shock absorption, structural filling, positioning and buffering.
Process advantages:
- The foam hardness and structure (flexible/semi-rigidfoam) can be adjusted according to the needs of different parts;
- Quick demoulding, good fluidity, can be poured into complex mold cavities, and improve adaptability;
- Modular production, compatible with robot operation and assembly line integration.
Typical uses:
chassis sound insulation pads, wheel well fillers, trunk pads, door shock absorbers.
Summary
Polyurethane high pressure foaming machines help the automotive industry achieve more efficient component manufacturing through their automation, precision, and energy-saving features. Whether it is seats that improve riding comfort, dashboards and steering wheels that affect driving experience, or functional cushioning parts, their high quality foaming capabilities and flexible process control have brought significant competitive advantages to OEMs and parts suppliers.
If you need to know more about seat mold structure, high pressure mixing system specifications, or complete line customization solutions, please feel free to contact us.
