Short answer: rigid polyurethane foam is the usual choice when a project needs thermal insulation, dimensional stability or moisture control. Flexible polyurethane foam is designed mainly for cushioning, resilience and sound absorption. One terminology warning matters: flexible cushioning foam is not the same product as open-cell spray polyurethane foam used in some building assemblies. Compare the certified thermal resistance, water-vapour performance, density and fire classification of the exact product rather than choosing from the words "open-cell" or "closed-cell" alone.
The U.S. EPA comparison of spray polyurethane foam types gives reference values of about R-6.5 per inch for closed-cell spray foam and R-3.5 per inch for open-cell spray foam. These are approximate values for spray-foam products, not universal specifications for every rigid or flexible polyurethane formulation.
Rigid Foam, Flexible Foam and Open-Cell Spray Foam Are Not Three Names for Two Products
"Rigid versus flexible" describes mechanical behaviour, while "open-cell versus closed-cell" describes cell structure. The terms often overlap in polyurethane products, but they are not exact synonyms. Flexible molded foam for a seat cushion is engineered to recover after repeated compression. Open-cell spray foam is formulated and tested for installation in a building assembly. Closed-cell spray foam cures rigid, while injected rigid foam for a refrigerator cabinet is processed inside a closed cavity. A buyer should therefore compare the final product, application method and certified properties, not cell structure alone.
Rigid vs Flexible Polyurethane Foam Comparison
| Decision factor | Rigid polyurethane foam | Flexible polyurethane foam |
|---|---|---|
| Primary purpose | Thermal insulation, cavity filling and dimensional support | Cushioning, comfort, resilience and acoustic absorption |
| Typical cell structure | Predominantly closed-cell | Predominantly open-cell |
| Shape after curing | Holds its form | Compresses and recovers |
| Thermal data | Use the tested value on the product certificate. The EPA spray-foam comparison gives an approximate value of R-6.5 per inch for closed-cell polyurethane spray foam. | Do not assign a cushioning foam an insulation rating by analogy. The EPA page gives about R-3.5 per inch for open-cell polyurethane spray foam, which is a different product category. |
| Moisture decision | Can provide low-permeance insulation when the tested product and assembly are correctly specified | General flexible cushioning foam is not a substitute for a tested insulation or vapour-control layer |
| Typical applications | Refrigerators, cold rooms, insulated panels, tanks, pipes, walls and roofs | Seats, mattresses, pillows, packaging and acoustic components |
| Production route | Pour or injection, panel lamination, or on-site spray, depending on the product | Molded flexible-foam line or slabstock and cutting process, depending on the product |
R-values are product- and test-specific. Blowing agent, density, ageing, thickness and installation quality all affect the declared result. Use the supplier's current test report for design or procurement; the reference values above are not a substitute for a project specification. ASTM C1029-25 identifies thermal resistance, water absorption, water-vapour permeability and closed-cell content among the properties tested for spray-applied rigid cellular polyurethane insulation.
Which Foam Should You Choose?
Choose rigid PU foam for refrigerator and freezer cabinets, cold-room panels, insulated doors, pipes, tanks and other applications where thermal resistance and dimensional stability are the main requirements. The production method then depends on the part: cabinet cavities are normally filled by metered injection, continuous panels use a laminating line, and existing roofs or walls may use a spray-applied system.
Choose flexible PU foam when the product must compress and recover, as in seating, mattresses, pillows, protective packaging and acoustic parts. Specify resilience, hardness, density and fatigue performance for the finished part instead of borrowing an R-value from an open-cell spray-insulation data sheet.

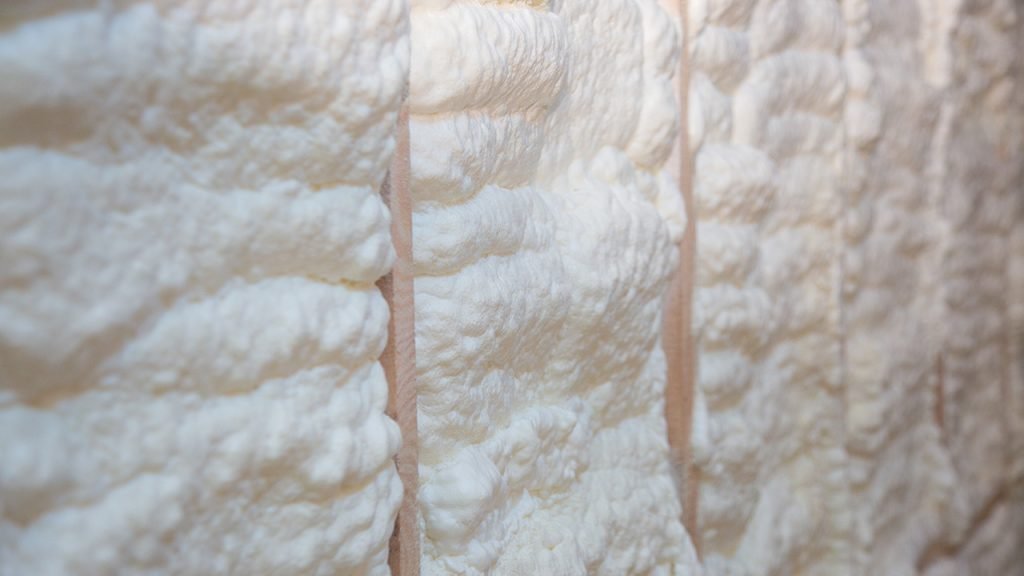

For a building envelope, do not make the selection from this comparison alone. Climate, substrate, fire requirements, vapour profile, local code and the tested assembly all matter. The U.S. EPA moisture-control guidance explains why insulation and air-control layers still require correct detailing at joints, penetrations and transitions.
Match the Foam to the Production Process

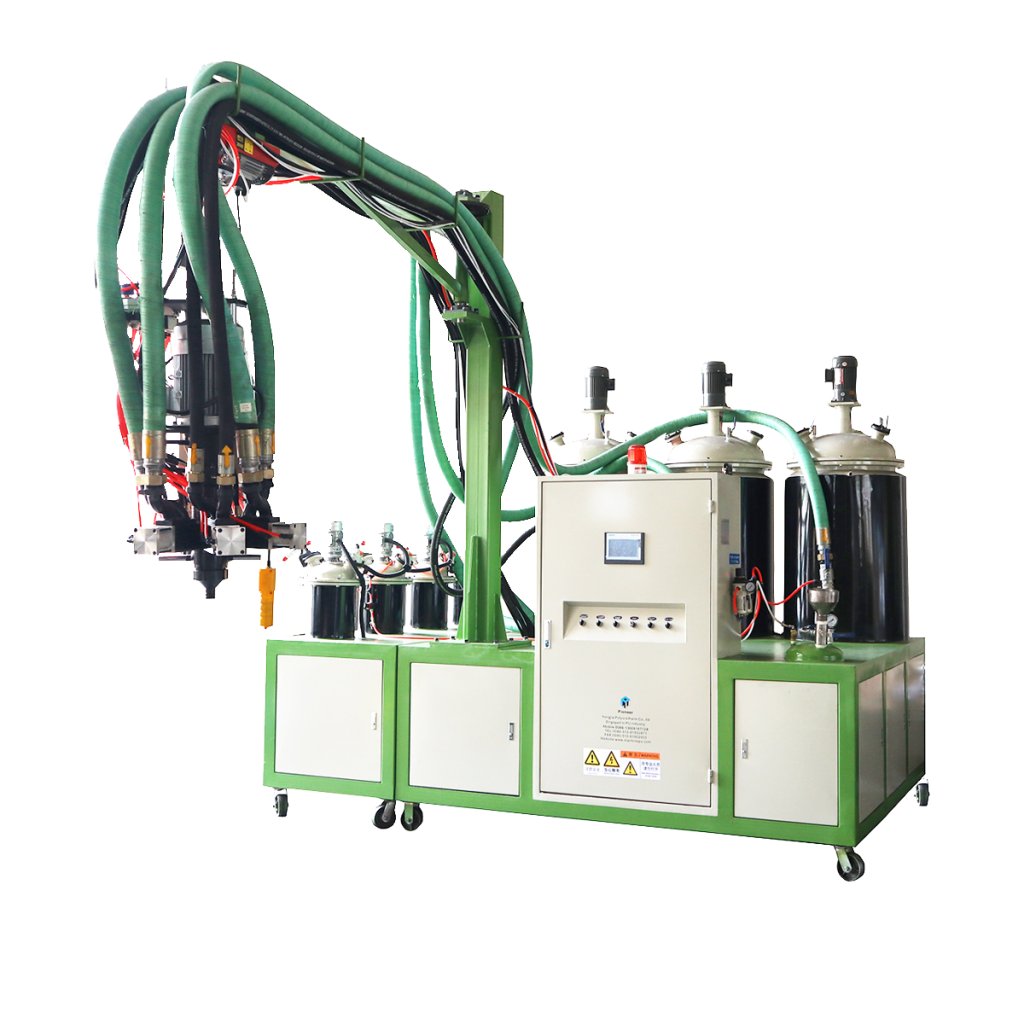

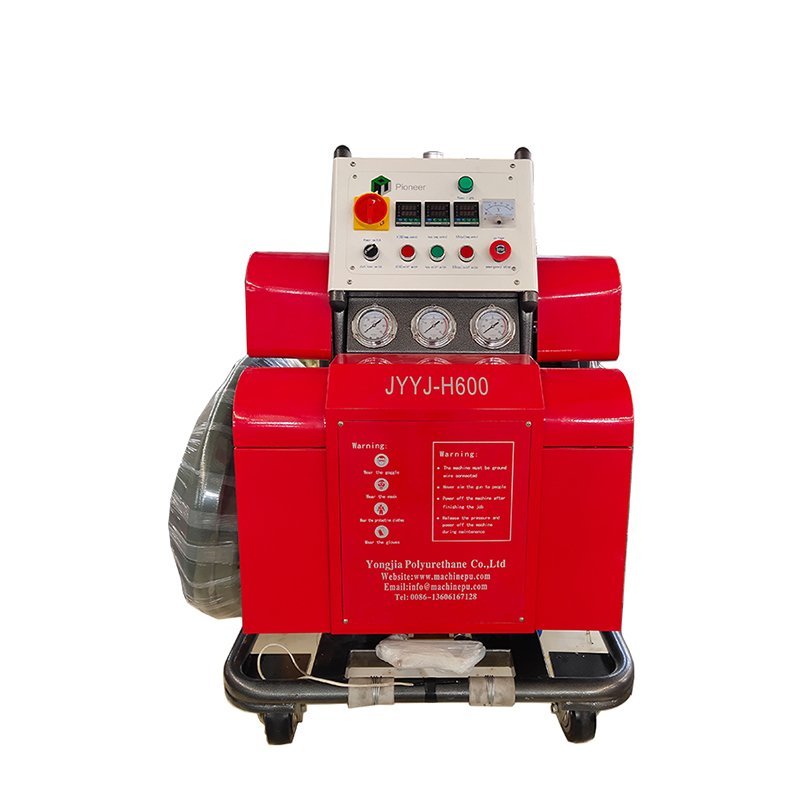

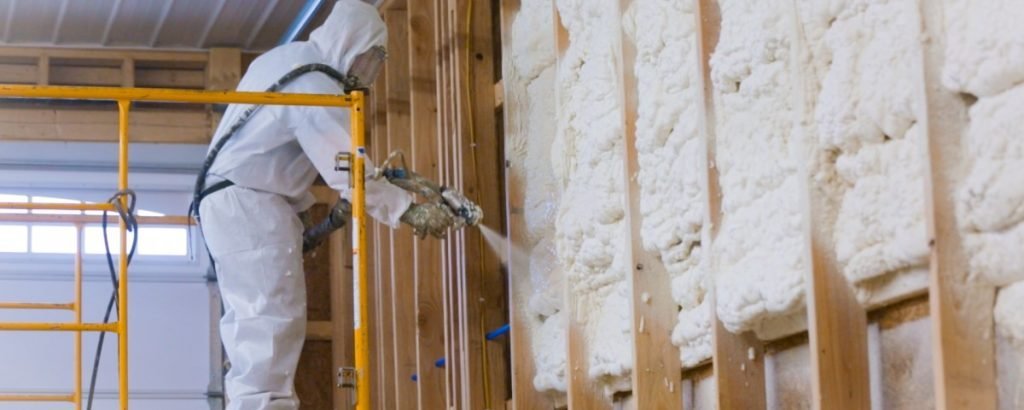

A machine should be selected after the manufacturer defines the finished product, chemical system, shot weight or line output, cycle time and required test standard. Refrigerator cabinets and other high-volume rigid cavities commonly use a high-pressure PU foam machine. Continuous insulated boards require a sandwich panel production line, while field-applied wall and roof systems use a PU spray foam machine.
Flexible molded products follow a different process. A seat or cushion program needs mold handling, repeatable shot control and curing capacity; a packaging application may instead use a dedicated PU foam packaging machine. Review the flexible polyurethane foam production line guide before asking one machine to cover incompatible products.
Rigid and flexible products therefore do not automatically belong on the same production line. Confirm the formulation, tanks, pumps, mixhead, output range, mold handling, ventilation, curing arrangement and changeover procedure before specifying equipment.
Frequently Asked Questions
Is rigid or flexible foam better for insulation?
Rigid polyurethane foam is normally the better choice when thermal resistance, dimensional stability or moisture control is the main requirement. Flexible polyurethane foam is primarily selected for cushioning and recovery. For building work, compare certified products and tested assemblies rather than relying only on the rigid or flexible label.
Is flexible polyurethane foam the same as open-cell spray foam insulation?
No. Both may have predominantly open cells, but they are formulated, processed and tested for different jobs. Flexible molded foam is used in products such as seats and packaging; open-cell spray foam is installed as part of a building assembly.
What R-value should I use for polyurethane foam?
Use the declared value from the current test report for the exact product and thickness. The EPA spray-foam comparison gives approximate values of R-6.5 per inch for closed-cell polyurethane spray foam and R-3.5 per inch for open-cell polyurethane spray foam, but those reference values should not be transferred to every rigid or flexible PU formulation.
Can the same machine make rigid and flexible polyurethane foam?
Some metering platforms can be configured for more than one chemical system, but a complete production process is application-specific. Tanks, pumps, mixhead, output range, mold handling, ventilation and curing arrangements must all match the formulation and finished product; changeover compatibility must be confirmed by the chemical supplier and machine manufacturer.
Summary
Rigid polyurethane foam is the normal starting point for refrigerators, cold-chain equipment, panels, pipes, tanks and building assemblies where insulation and dimensional stability drive the decision. Flexible polyurethane foam belongs primarily in products that need cushioning, resilience or acoustic absorption. Open-cell spray foam is a separate insulation product and should not be treated as interchangeable with flexible cushioning foam. Once the finished product and verified performance requirements are clear, select the production process and foaming equipment to match them.
